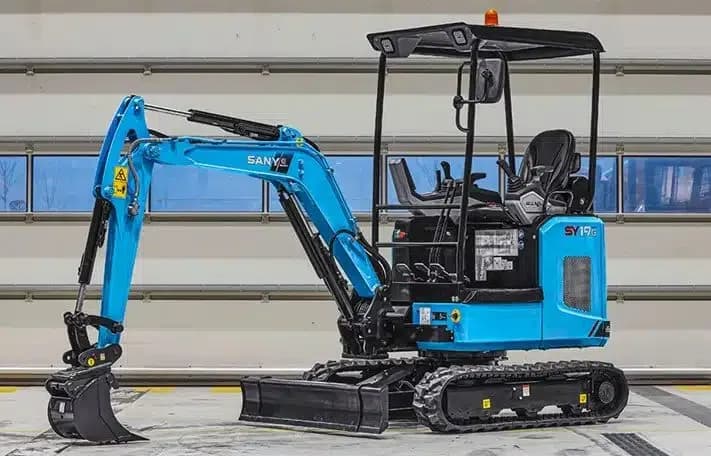

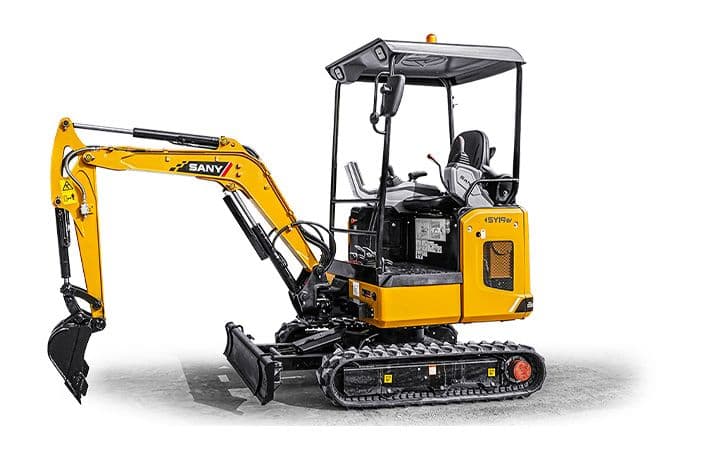

SANY SY19E
SANY SY19E: elektrische minigraver van 1,9 ton. Zero emission, stil werken. Ideaal voor binnenstedelijk en indoor werk.
Technische specificaties
- Bedrijfsgewicht
- 1.965kg
- Graafhoogte max. mm
- 3.665
- Graafdiepte max. mm
- 2.360
- Uitkiephoogte max. mm
- 2.635
- Kettingbreedte mm
- 230
- Blad hoogte mm :
- 270
- Spoorbreedte mm :
- 0
Standaard uitrusting.
Zero-Emissie
Volledig elektrisch - geen uitstoot, geen uitlaatgassen.
Fluisterstil
Minimaal geluidsniveau, ideaal voor woonwijken en binnenwerk.

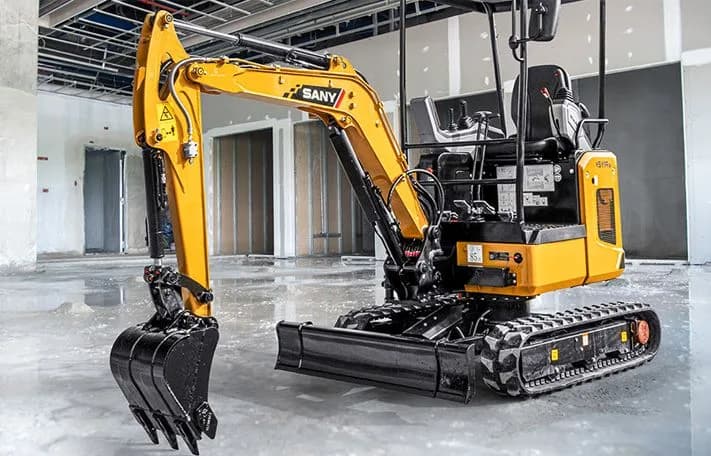

Geschikt voor Binnenwerk
Veilig te gebruiken in besloten en overdekte ruimtes.
Waarom kiezen voor de SANY SY19E?
Volledig elektrisch werken zonder uitstoot of geluidsoverlast — perfect voor binnenwerk, milieuzones en duurzame projecten.
- 1
Stille & uitstootvrij
Compact en geluidsarm — werk binnen, in kassen, in kelders en woonwijken zonder overlast.
- 2
Lithium-ion accu
CATL LiFePO4-accupakket met snelladen via standaard werkaansluiting. Lange levensduur, duizenden cycli.
- 3
Subsidie & milieuzones
Komt in aanmerking voor SSEB-, MIA/Vamil- en EIA-subsidies. Volwaardig inzetbaar op zero-emission projecten.
De techniek achter de SANY SY19E.
Kwaliteit
Show strength – de nieuwe SANY mini graafmachine is geconfigureerd voor duurzaamheid door en door. De boom werd bijvoorbeeld met 30% verlengd en de Graafarm met 65% aanzienlijk toegenomen.
Afmetingen

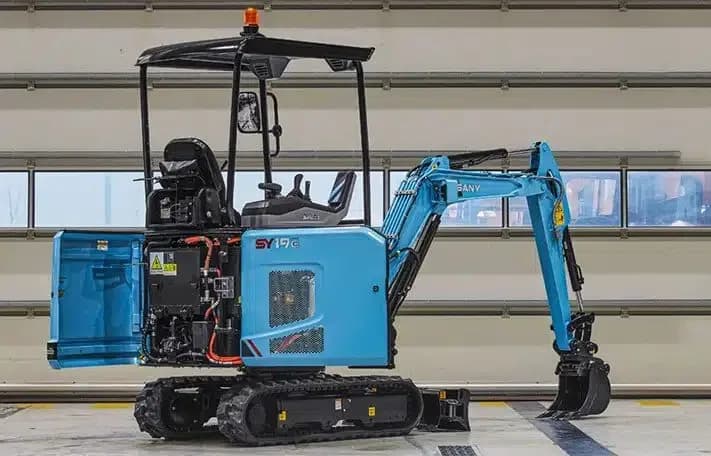

Power-pakket – in order to provide the necessary power, the new mini excavator is equipped with a trendsetting battery pack that impresses with its high power density, short charging times and long battery life. Duurzaam en trendsetting – the innovative battery pack impresses users with its high power density, long battery life and short charging time. The latter is just 1.5 hours (direct current) for a short charging cycle and 2.5 hours (alternating current) for a continuous charging cycle. The battery pack is charged using a standard 220 V household socket, a 380 V three-phase current or a rapid charging station for passenger vehicles. In any case, the mini excavator is quickly ready for operation and can work continuously for up to six hours on a full battery charge – enough for an entire working day. In addition, the power supply mode supports operating mode purely with electricity, independently of an external power source. The integrated multi-in-one control unit is at the core of the intelligent power consumption. It controls the functions of the electric drive, the three-phase AC charging function, the low-voltage power supply and the vehicle control system – as well as the additional pre-charging functions. The battery‘s long service life is ensured by effective thermal management during operation and the charging process.
Veiligheid
Zichtbaarheid voor veiligheid – two LED working lights and one on the boom are fitted as standard ensure optimal illumination of the working area in all conditions. Uitgebreide en betrouwbaar – the TOPS-/FOPS-certified canopy provides both the machine and the operator with effective protection. It also meets the highest safety standards with its additional cross struts and a handle on the roof structure. In addition, the boom and blade cylinders are protected during tough operations at construction sites by the effective cylinder protection. In the worst-case scenario, the emergency lowering ensures that the equipment can even be lowered if there are problems with the drive unit, such that the machine can be transported or maintenance can be performed safely.
Componenten
Perfect duo – the permanent magnet synchronous motor with its low energy consumption is optimally designed for the newly developed battery pack. Betrouwbare topperformer –equipped with a permanent magnet synchronous motor, the new SANY mini excavator impresses with high power and torque density, excellent efficiency, reliability and low energy consumption. The load-sensing hydraulic system with a variable and load-dependent function delivers an excellent hydraulic performance for its weight class. This enables the interaction between individual consumers to be coordinated with greater flexibility and precision.
Bedrijfskosten
Compared to conventional drives, it consumes around 30% less energy and its maintenance costs are reduced by 80%. Goed besparingen – compared to machines with a combustion engine, having a fully electric drive reduces direct energy costs by around 30%.
